RAM TRUE BALANCE BILLET FLYWHEELS

What flywheel do I need?

The flywheel is the foundation of the clutch and flywheel kit, and because it is an energy storage device, also determines the amount of power available to launch the car. A heavy flywheel stores more energy as it spins than a light flywheel. If your engine and gearing combination requires more power or inertia to make the car launch without bogging the motor, you will want a heavier flywheel. Keep in mind, though, that a heavier flywheel will be slower to accelerate through the gears. A lighter flywheel creates less inertia at launch, but will accelerate quicker through the gears. In order to effectively use a lighter flywheel, you must consider the car weight, operating RPM of the engine, and most importantly, the gearing. Too little gear will cause the engine to nose over or ‘bog’ on launch.

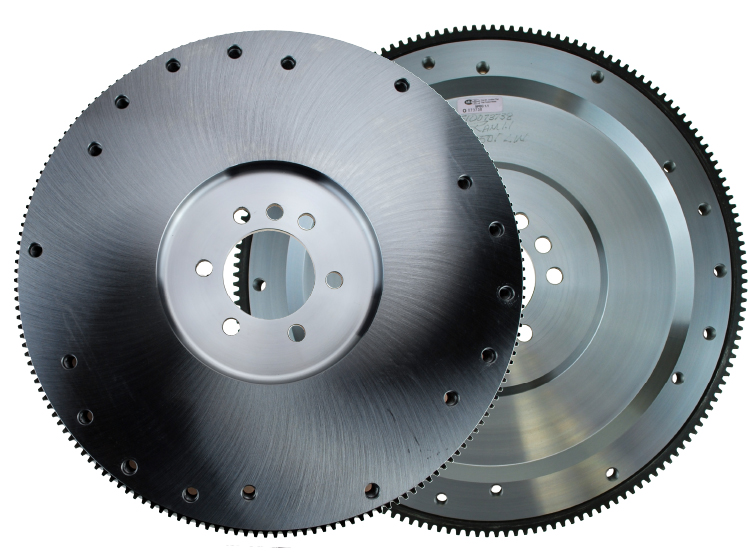

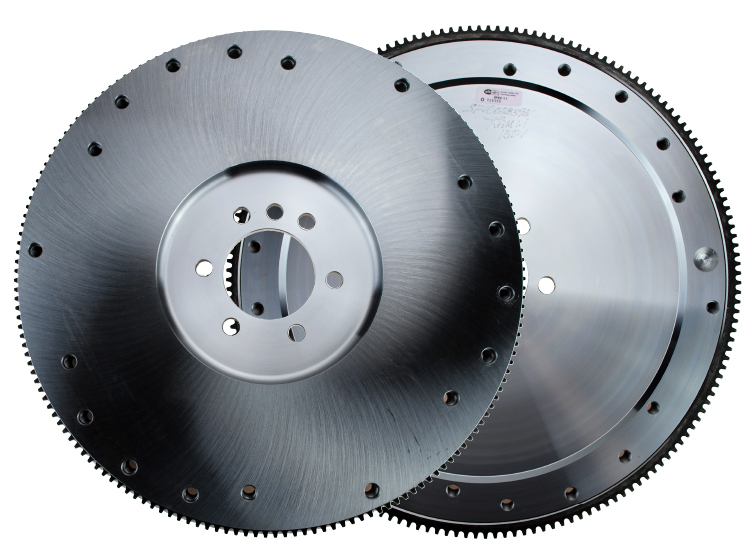

RAM billet steel flywheels are recommended as a replacement for factory cast flywheels in high performance and racing vehicles. Cast flywheels are not explosion proof and can be dangerous when used in high performance applications at higher RPMs. RAM billet steel flywheels are CNC machined from certified materials and exceed SFI specifications. After machining, the clutch flywheels are blanchard ground parallel to the crankshaft mounting surface ensuring minimum runout and the optimum mating surface for the clutch disc. Use steel flywheels in heavier drag race cars or for the best driveability in street driven vehicles.

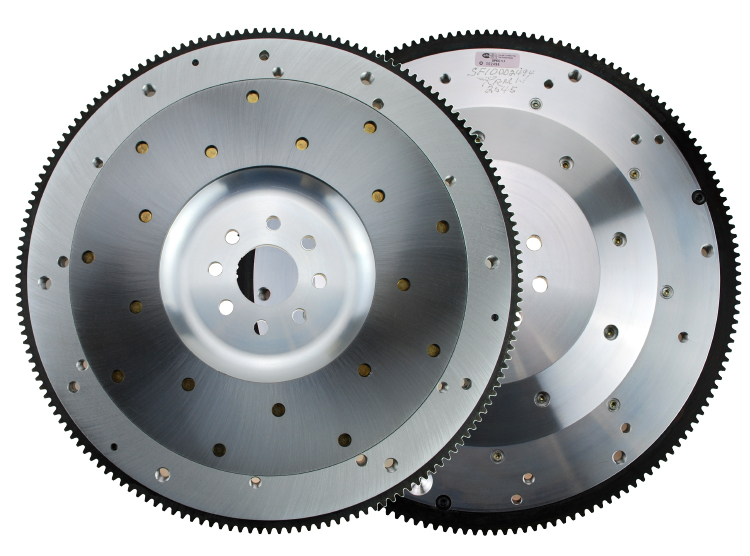

The choice for most all out competition vehicles, RAM billet aluminum flywheels are CNC machined from certified materials and exceed SFI standards. A key feature of a RAM aluminum flywheel is the ¼ inch steel friction insert*. A well tuned competition clutch system has a predetermined amount of slippage at launch and on the gear changes. The flywheel insert must have enough mass to absorb the heat generated by slippage without distortion; ensuring maximum clutch life and consistent performance. Thinner inserts can warp and lift causing uneven engagement across the clutch disc. The thicker insert remains flatter and dissipates the heat better. Each flywheel is precision ground after the steel insert is installed to ensure the friction surface is parallel with the crankshaft flange for minimum runout and to provide the optimum mating surface for your choice of clutch disc.

RAM offers flywheels individually for most domestic applications, as well as clutch kits with flywheels for specific applications.  Make RAM your choice for the best clutch flywheel combination!

RAM TRUE BALANCE BILLET FLYWHEELS

APPLICATION

STEEL

LW STEEL

ALUMINUM

APPLICATION

Chevrolet pre-86 '0' balance 168 tooth

STEEL

1501

LW STEEL

1501LW

ALUMINUM

2501

APPLICATION

Chevrolet pre-86 '0' balance 168 tooth

STEEL

1502

LW STEEL

-

ALUMINUM

-

APPLICATION

Chrysler 6 bolt crank '0' balance 130 tooth

STEEL

1503

LW STEEL

1503LW

ALUMINUM

2503

APPLICATION

Ford SB 28 oz/in balance 164 tooth

STEEL

1505

LW STEEL

1505LW

ALUMINUM

2515

APPLICATION

Ford SB 50 oz/in balance 164 tooth

STEEL

1506

LW STEEL

-

ALUMINUM

2506

APPLICATION

Ford SB '0' balance 164 tooth

STEEL

1507

LW STEEL

1507LW

ALUMINUM

2516

APPLICATION

Chevrolet 86-up '0' balance 153 tooth

STEEL

1508

LW STEEL

-

ALUMINUM

2508

APPLICATION

Chevrolet 86-up ext. balance 153 tooth

STEEL

1509

LW STEEL

-

ALUMINUM

2509

APPLICATION

Chevrolet SB pre-86 '0' balance 153 tooth

STEEL

1511

LW STEEL

-

ALUMINUM

2511

APPLICATION

Chevrolet SB pre-86 '400' balance 153 tooth

STEEL

1515

LW STEEL

-

ALUMINUM

-

APPLICATION

Ford BB 24.2 oz/in balance 176 tooth

STEEL

1517B

LW STEEL

-

ALUMINUM

2517B

APPLICATION

Ford BB 24.2 oz/in balance 184 tooth

STEEL

1517

LW STEEL

-

ALUMINUM

2517

APPLICATION

Ford BB 28 oz/in balance 184 tooth for GM 11" diaphragm

STEEL

1518F

LW STEEL

-

ALUMINUM

-

APPLICATION

Ford BB 28 oz/in balance 184 tooth

STEEL

1518

LW STEEL

-

ALUMINUM

2518

APPLICATION

Ford BB '0' balance 176 tooth

STEEL

1519B

LW STEEL

-

ALUMINUM

2519B

APPLICATION

Ford BB '0' balance 184 tooth for GM 11" diaphragm

STEEL

1519F

LW STEEL

-

ALUMINUM

2519F

APPLICATION

Ford BB '0' balance 184 tooth

STEEL

1519

LW STEEL

1519LW

ALUMINUM

2519

APPLICATION

Chevrolet pre-90 '454' balance 168 tooth

STEEL

1521

LW STEEL

1521LW

ALUMINUM

2521

APPLICATION

Chevrolet pre-90 '454' balance 168 tooth

STEEL

1522

LW STEEL

-

ALUMINUM

-

APPLICATION

Chevrolet pre-86 '400' balance 168 tooth

STEEL

1523

LW STEEL

1523LW

ALUMINUM

2523

APPLICATION

Ford SB 50 oz/in balance 157 tooth

STEEL

1525

LW STEEL

1525LW

ALUMINUM

2525

APPLICATION

Ford SB 28 oz/in balance 157 tooth

STEEL

1527

LW STEEL

1527LW

ALUMINUM

2527

APPLICATION

Ford SB '0' balance 157 tooth

STEEL

1529

LW STEEL

1529LW

ALUMINUM

2529

APPLICATION

Chevrolet SB 86-up external balance 168 tooth

STEEL

1530

LW STEEL

1530LW

ALUMINUM

2530

APPLICATION

Chevrolet SB 86-up internal balance 168 tooth

STEEL

1531

LW STEEL

1531LW

ALUMINUM

2531

APPLICATION

Chevrolet 454/502 90-up 41.7 oz steel crank external balance 168 tooth

STEEL

1532

LW STEEL

1532LW

ALUMINUM

2532

APPLICATION

Chevrolet 454/502 90-up 42.5 oz cast crank external balance 168 tooth

STEEL

1532C

LW STEEL

-

ALUMINUM

-

APPLICATION

Ford Mustang 5.0L 2019-up 164 tooth (must use RAM Concept 10.5 or xx955, xx952 clutch kits)

STEEL

-

LW STEEL

-

ALUMINUM

2539

APPLICATION

Ford modular 6 bolt internal balance 164 tooth

STEEL

1540

LW STEEL

1540LW

ALUMINUM

2540

APPLICATION

Ford 3.8L 1997-98 external balance 164 tooth

STEEL

1541

LW STEEL

-

ALUMINUM

2541

APPLICATION

Ford 3.8L 1999-00 external balance 164 tooth

STEEL

1542

LW STEEL

-

ALUMINUM

2542

APPLICATION

Ford 3.8L, 3.9L 2001-04 internal balance 164 tooth

STEEL

1543

LW STEEL

-

ALUMINUM

2543

APPLICATION

Ford modular 8 bolt internal balance 164 tooth

STEEL

1545

LW STEEL

1545LW

ALUMINUM

2545

APPLICATION

Ford flathead 1938-48 221, 239 '0' balance 112 tooth (59AB)

STEEL

1547

LW STEEL

-

ALUMINUM

2547

APPLICATION

Ford flathead 1949-53 239, 255 '0' balance 112 tooth (8BA)

STEEL

1549

LW STEEL

-

ALUMINUM

2549

APPLICATION

GM LS 6 bolt 168 tooth .400" thicker

STEEL

1550X

LW STEEL

-

ALUMINUM

2550X

APPLICATION

Chevy Corvette 2014-19, Camaro 2016-23 (RAM clutch only)

STEEL

-

LW STEEL

-

ALUMINUM

2551

APPLICATION

GM LS 6 bolt '0' balance 168 tooth

STEEL

1550

LW STEEL

1550LW

ALUMINUM

2550

APPLICATION

GM LS2 '0' balance 168 tooth step flywheel

STEEL

1552

LW STEEL

-

ALUMINUM

2552

APPLICATION

GM LS9 9 bolt 168 tooth flat

STEEL

1553F

LW STEEL

-

ALUMINUM

2553F

APPLICATION

GM LT 93-97 '0' balance 153 tooth

STEEL

1554

LW STEEL

-

ALUMINUM

2554

APPLICATION

Adapts 93-97 LT T56 to 2 pc. RMS block '0' balance 168 tooth

STEEL

1555

LW STEEL

-

ALUMINUM

2555

APPLICATION

Pontiac 1964-72 2.75 register '0' balance 166 tooth

STEEL

1557

LW STEEL

1557LW

ALUMINUM

2557

APPLICATION

GM LS/LT 8 bolt flat '0' balance 168 tooth

STEEL

1558F

LW STEEL

1558LW

ALUMINUM

2558F

APPLICATION

GM LS/LT 8 bolt flat '0' balance 168 tooth .400" thicker

STEEL

1558X

LW STEEL

-

ALUMINUM

2558X

APPLICATION

Olds V8 1962-67 '0' balance 166 tooth

STEEL

1573

LW STEEL

-

ALUMINUM

2573

APPLICATION

Olds 350/403/455 ext. balance 166 tooth

STEEL

1574

LW STEEL

-

ALUMINUM

2574

APPLICATION

Olds 350/403/455 '0' balance 166 tooth

STEEL

1575

LW STEEL

-

ALUMINUM

2575

APPLICATION

Chrysler slant 6 small bore '0' balance 122 tooth pre-68

STEEL

1580A

LW STEEL

-

ALUMINUM

-

APPLICATION

Chrysler slant 6 large bore '0' balance 122 tooth 68-up

STEEL

1580

LW STEEL

-

ALUMINUM

-

APPLICATION

Chrysler 273 V8 '0' balance 122 tooth

STEEL

1581

LW STEEL

-

ALUMINUM

-

APPLICATION

Chrysler 8 bolt 0 balance 130 tooth

STEEL

1583

LW STEEL

1583LW

ALUMINUM

2583

APPLICATION

Chrysler Gen 3 Hemi pass side starter 130 tooth

STEEL

1585

LW STEEL

-

ALUMINUM

2585

APPLICATION

Dodge Challenger 08-22 ‘0’ balance 130 tooth

STEEL

-

LW STEEL

-

ALUMINUM

2586

APPLICATION

Chrysler Gen 3 Hemi 130 tooth Driver's side starter

STEEL

1588

LW STEEL

-

ALUMINUM

-

APPLICATION

Chrysler Gen 3 Hemi 143 tooth Driver's side starter

STEEL

1589

LW STEEL

-

ALUMINUM

-

APPLICATION

Chrysler 8 bolt 0 balance 143 tooth

STEEL

1593

LW STEEL

1593LW

ALUMINUM

2593

APPLICATION

Chrysler 6 bolt 0 balance 143 tooth

STEEL

1595

LW STEEL

1595LW

ALUMINUM

2595
