1982-1997 Camaro/Firebird Clutches and Clutch Systems

1982-1997 RAM single disc clutch kits
and dual disc systems for Camaro/Firebird

1982-1997 Camaro/Firebird Clutches and Clutch Systems

1998-2002 RAM single disc clutch kits
and dual disc systems for Camaro

1982-1997 RAM single disc clutch kits and dual disc systems for Camaro/Firebird

RAM offers more options for 1982-97 Camaro and Firebird V8 engines use the same 10.5 inch clutch system 1982-92, although the flywheels change over in 1986 to the later model 1 piece rear main seal.  1993 was the introduction of the ‘pull style’ clutch systems in these cars.  RAM offers both conventional pull style kits as well as a unique push style conversion system that eliminates the factory fork and external slave and replaces them with an internal hydraulic release bearing.  Get the clutch system that best suits your application and anticipated use!

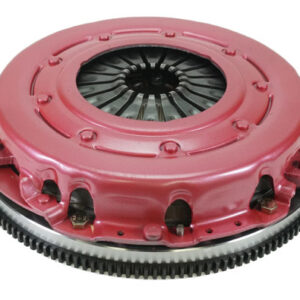

RAM push conversion systems

Model year 1993-97 F-body cars utilize a T56 6 speed transmission with a factory pull style clutch system.  RAM has developed a complete system to replace this pull style unit with a conventional push style package including the pressure plate, clutch disc, billet steel flywheel and internal hydraulic release bearing.  This package eliminates the factory fork and external slave cylinder.  Systems come with all of the lines and adapter fittings needed to connect right up to the factory master cylinder.  A choice of 300 series organic, 900/300 series Powergrip, or 900 series Powergrip HD metallic friction discs are available.  These systems are also ideal for customers using the 93-97 transmission in retrofit applications.

List of Applications:

  • 1982-97 Camaro Firebird V8 applications

90-0840 – LT1 push conversion 300 series steel flywheel

Single Disc Systems
Engine
CAMARO 1982-1997
5.7L
5.7L
5.0L
5.0L
YR1
93
93
86
82
YR2
97
97
92
85
Application Notes
Push style conversion system incl. hydraulics
ALL
ALL
OEM Set
88516
-
88730
88730
HDX Set
88516HDX
90-0840

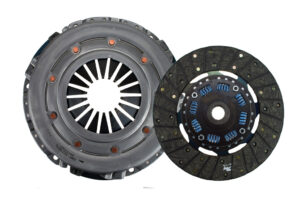

88730HDX
88730HDX
Powergrip Set
98516
90-0840P

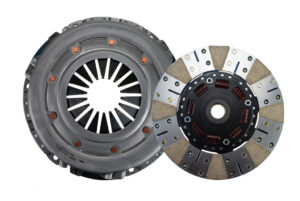

98730
98730

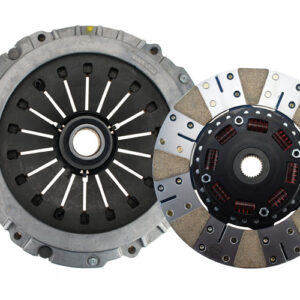

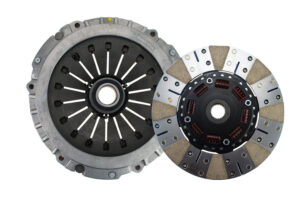

Powergrip HD Set
98516HD
90-0840N
98730HD
98730HD

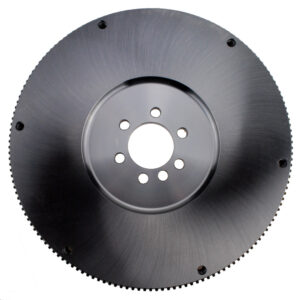

Flywheel Steel
1554
-
1509
1511
Flywheel Aluminum
2554
Incl.
2509
2511
Size & Spline
11, 1 1/8-26
10.5, 1 1/8-26
10.5, 1 1/8-26
10.5, 1 1/8-26
Dual Disc Systems
Engine
CAMARO 1982-1997
5.7L
5.7L
5.0L
YR1
93
93
82
YR2
97
97
92
Application Notes
Push style conversion system incl. hydraulics
ALL
Concept 10.5 - DUAL DISC
-
-
50-2127
Concept 10.5 - 900S
-
-
50-2127N
Force 10.5 - DUAL DISC
-
-
-
Force 10.5 900 series - DUAL DISC
-
-
-
Pro Street - DUAL DISC
-
-
-
Pro Street 900s - DUAL DISC
-
-
-
SINGLE DISC SYSTEMS
CAMARO 1982-97
ENGINE
5.7L
YR1
93
YR2
97
APPLICATION NOTES
OEM SET
88516
HDX SET
88516HDX
POWERGRIP SET
98516
POWERGRIP HD SET
98516HD
FLYWHEEL STEEL
1554
FLYWHEEL ALUMINUM
2554
SIZE & SPLINE
11, 1 1/8-26
SINGLE DISC SYSTEMS
CAMARO 1982-97
ENGINE
5.7L
YR1
93
YR2
97
APPLICATION NOTES
Push style conversion system incl. hydraulics
OEM SET
-
HDX SET
90-0840
POWERGRIP SET
90-0840P
POWERGRIP HD SET
90-0840N
FLYWHEEL STEEL
-
FLYWHEEL ALUMINUM
Incl.
SIZE & SPLINE
10.5, 1 1/8-26
SINGLE DISC SYSTEMS
CAMARO 1982-97
ENGINE
5.0L
YR1
86
YR2
92
APPLICATION NOTES
ALL
OEM SET
88730
HDX SET
88730HDX
POWERGRIP SET
98730
POWERGRIP HD SET
98730HD
FLYWHEEL STEEL
1509
FLYWHEEL ALUMINUM
2509
SIZE & SPLINE
10.5, 1 1/8-26
SINGLE DISC SYSTEMS
CAMARO 1982-97
ENGINE
5.0L
YR1
82
YR2
85
APPLICATION NOTES
ALL
OEM SET
88730
HDX SET
88730HDX
POWERGRIP SET
98730
POWERGRIP HD SET
98730HD
FLYWHEEL STEEL
1511
FLYWHEEL ALUMINUM
2511
SIZE & SPLINE
10.5, 1 1/8-26
DUAL DISC SYSTEMS
CAMARO 1982-97
ENGINE
5.7L
YR1
93
YR2
97
APPLICATION NOTES
Concept 10.5 - DUAL DISC
-
Concept 10.5 - 900S
-
Force 10.5 - DUAL DISC
-
Force 10.5 900 series - DUAL DISC
-
Pro Street - DUAL DISC
-
Pro Street 900s - DUAL DISC
-
DUAL DISC SYSTEMS
CAMARO 1982-97
ENGINE
5.7L
YR1
93
YR2
97
APPLICATION NOTES
Push style conversion system incl. hydraulics
Concept 10.5 - DUAL DISC
-
Concept 10.5 - 900S
-
Force 10.5 - DUAL DISC
-
Force 10.5 900 series - DUAL DISC
-
Pro Street - DUAL DISC
-
Pro Street 900s - DUAL DISC
-
DUAL DISC SYSTEMS
CAMARO 1982-97
ENGINE
5.0L
YR1
82
YR2
92
APPLICATION NOTES
ALL
Concept 10.5 - DUAL DISC
50-2127
Concept 10.5 - 900S
50-2127N
Force 10.5 - DUAL DISC
-
Force 10.5 900 series - DUAL DISC
-
Pro Street - DUAL DISC
-
Pro Street 900s - DUAL DISC
-

Add ‘S’ to the end of any Force 10.5 or Pro Street dual disc part number for steel flywheel

Learn more about RAM Clutches for Camaro

LS promotional

LS single disc complete clutch systems

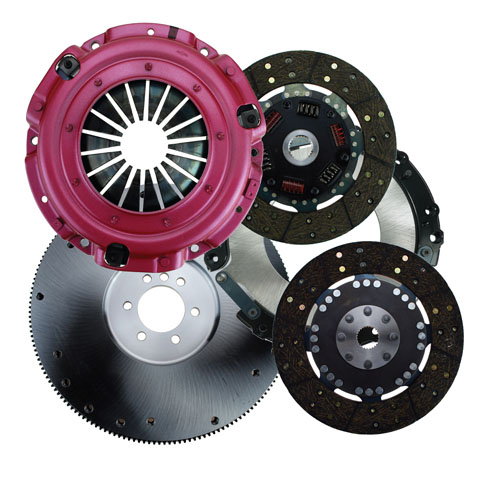

RAM Pro Street dual disc

RAM Force 10.5 dual disc

RAM billet flywheels

RAM hydraulic release bearings

The videos above will tell you about RAM clutches, flywheels, and hydraulics for your Camaro/Firebird. More RAM video is available on our YouTube page.

Applications

1982 Camaro Firebird, 1983 Camaro Firebird, 1984 Camaro Firebird, 1985 Camaro Firebird, 1986 Camaro Firebird, 1987 Camaro Firebird, 1988 Camaro Firebird, 1989 Camaro Firebird, 1990 Camaro Firebird, 1991 Camaro Firebird, 1992 Camaro Firebird, 1993 Camaro Firebird, 1994 Camaro Firebird, 1995 Camaro Firebird, 1996 Camaro Firebird, 1997 Camaro Firebird.
