LT1 CAMARO/FIREBIRD PUSH CONVERSION SYSTEMS
Upgrade Your LT1 T56 with a RAM Push-Style Street Performance Clutch System
Stop fighting the factory pull clutch system and upgrade to a RAM Push conversion!

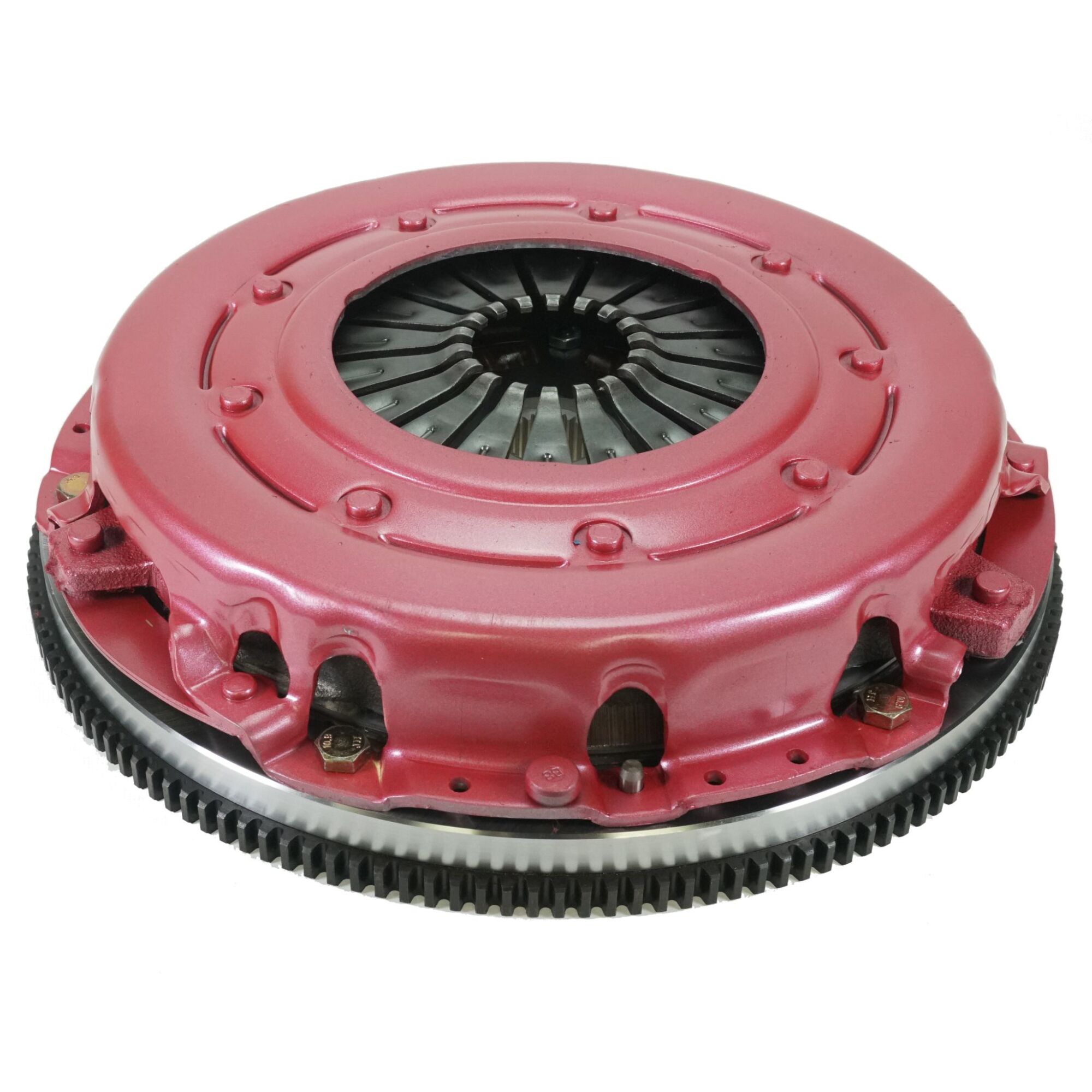

Model year 1993-97 F-body cars utilize a T56 6 speed transmission with a factory pull style clutch system. RAM has engineered an all inclusive clutch kit to replace this pull style unit with a conventional single or dual disc push style package including the pressure plate, clutch disc, billet steel flywheel and internal hydraulic release bearing. This package eliminates the factory fork and external slave cylinder.
Systems come with all of the lines and adapter fittings needed to connect right up to the factory master cylinder. A choice of 300 series organic, 900/300 series Powergrip, or 900 series Powergrip HD metallic friction discs are available in single disc clutch kits, 300 series or 900 series in Concept 9.5 dual disc clutch kits.
These systems are also ideal for customers using the 93-97 transmission in retrofit applications, and RAM has applications for most engine/flywheel combinations!

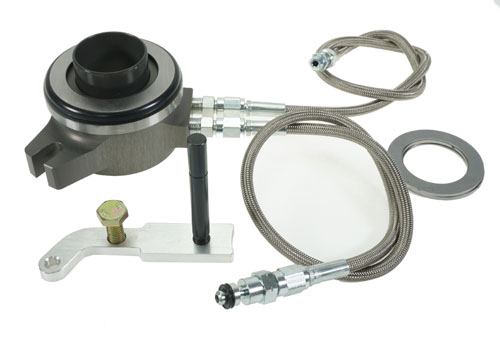

NOTE: Installation of these systems requires proper measurement and setup of the RAM hydraulic bearing kit. We recommend reviewing the instruction sheet links prior to placing your order.
Installation requires flywheel bolt set 575.
Choose the Street Performance Clutch That Fits Your Application
>>>increasing capacity
Single Disc 300 Series
450 HP
- Stock Upgrade
- Higher clampload pressure plate
- Smooth engaging organic friction material
- Excellent option for performance-minded drivers
Single Disc 300/900 Series
550 HP
- Perfectly balanced metallic/organic friction material
- Higher clampload pressure plate
- Urethane spring design delivers 33% more strength than traditional hubs
- Street-friendly clutch with increased horsepower capacity
Single Disc 900 Series
650 HP
- Max performance metallic friction material
- Higher clampload pressure plate
- Urethane spring design delivers 33% more strength than traditional hubs
- A perfect fit for street/strip applications and performance-minded drivers
Concept 9.5 300 Series
800 HP
- Organic friction material
- Precision ground flywheel ready for install
- Quiet strap driven floater plate
- Higher clampload pressure plate
Concept 9.5 900 Series
1000 HP
- Metallic friction materials
- Precision ground flywheel ready for install
- Quiet strap driven floater plate
- Higher clampload pressure plate
RAM offers several friction materials and performance levels, allowing you to match the clutch to the way your LT1 Camaro or Firebird is actually driven.

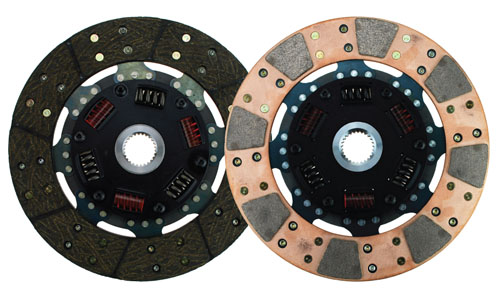

300 Series Organic – An excellent choice for street-driven performance cars, offering smooth engagement, good drivability, and increased holding capacity.
Powergrip 900/300 Series – Designed for higher-performance street and street/strip applications requiring increased holding capacity while maintaining good street characteristics.
Powergrip HD 900 Series Metallic – Provides maximum holding capacity for aggressive high-performance street, street/strip, and competition-oriented applications.
For applications requiring additional torque capacity, RAM Concept 9.5 Dual Disc Push Conversion Systems are available with 300 Series or 900 Series friction materials. These systems provide substantially increased holding capacity while maintaining the compact dimensions needed for the LT1/T56 combination.
YEARS | ENGINE | SINGLE DISC | SINGLE DISC | SINGLE DISC | CONCEPT 9.5 DUAL | CONCEPT 9.5 DUAL |
|---|---|---|---|---|---|---|
YEARS 1993-97 | ENGINE Factory LT1 | SINGLE ORGANIC | SINGLE 900/300 SERIES | SINGLE 900 SERIES | FORCE 9.5 | FORCE 9.5 900S |
YEARS 1993-97 | ENGINE 2 pc rear main internal balance | SINGLE ORGANIC | SINGLE 900/300 SERIES | SINGLE 900 SERIES | FORCE 9.5 | FORCE 9.5 900S |
YEARS 1993-97 | ENGINE 1 pc rear main internal balance | SINGLE ORGANIC | SINGLE 900/300 SERIES | SINGLE 900 SERIES | FORCE 9.5 | FORCE 9.5 900S |
YEARS 1993-97 | ENGINE 2 pc rear main '400' balance | SINGLE ORGANIC | SINGLE 900/300 SERIES | SINGLE 900 SERIES | FORCE 9.5 | FORCE 9.5 900S |
YEARS 1993-97 | ENGINE 2 pc rear main '454' balance | SINGLE ORGANIC | SINGLE 900/300 SERIES | SINGLE 900 SERIES | FORCE 9.5 | FORCE 9.5 900S |
