10 Inch Single Disc Billet 3 Lever Clutches

10 inch single disc billet

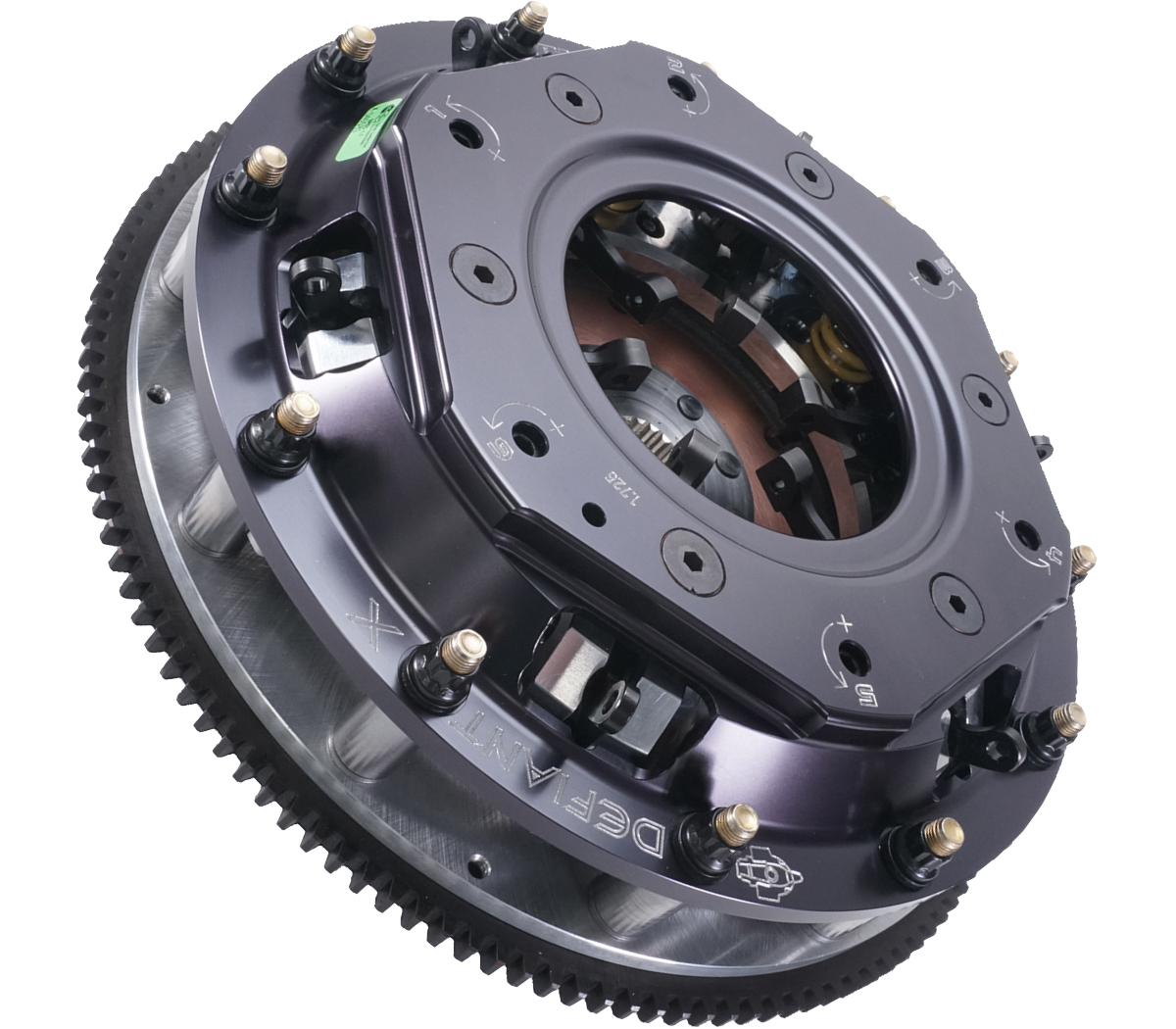

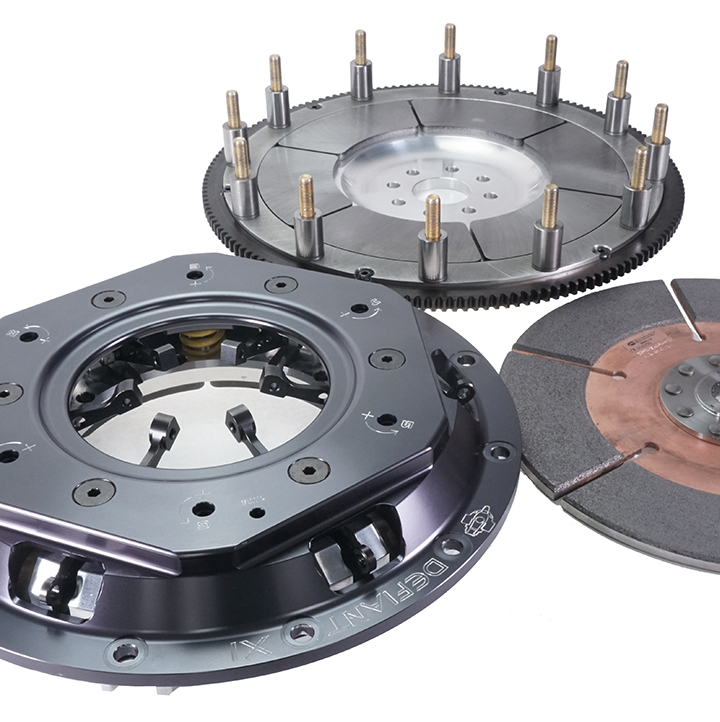

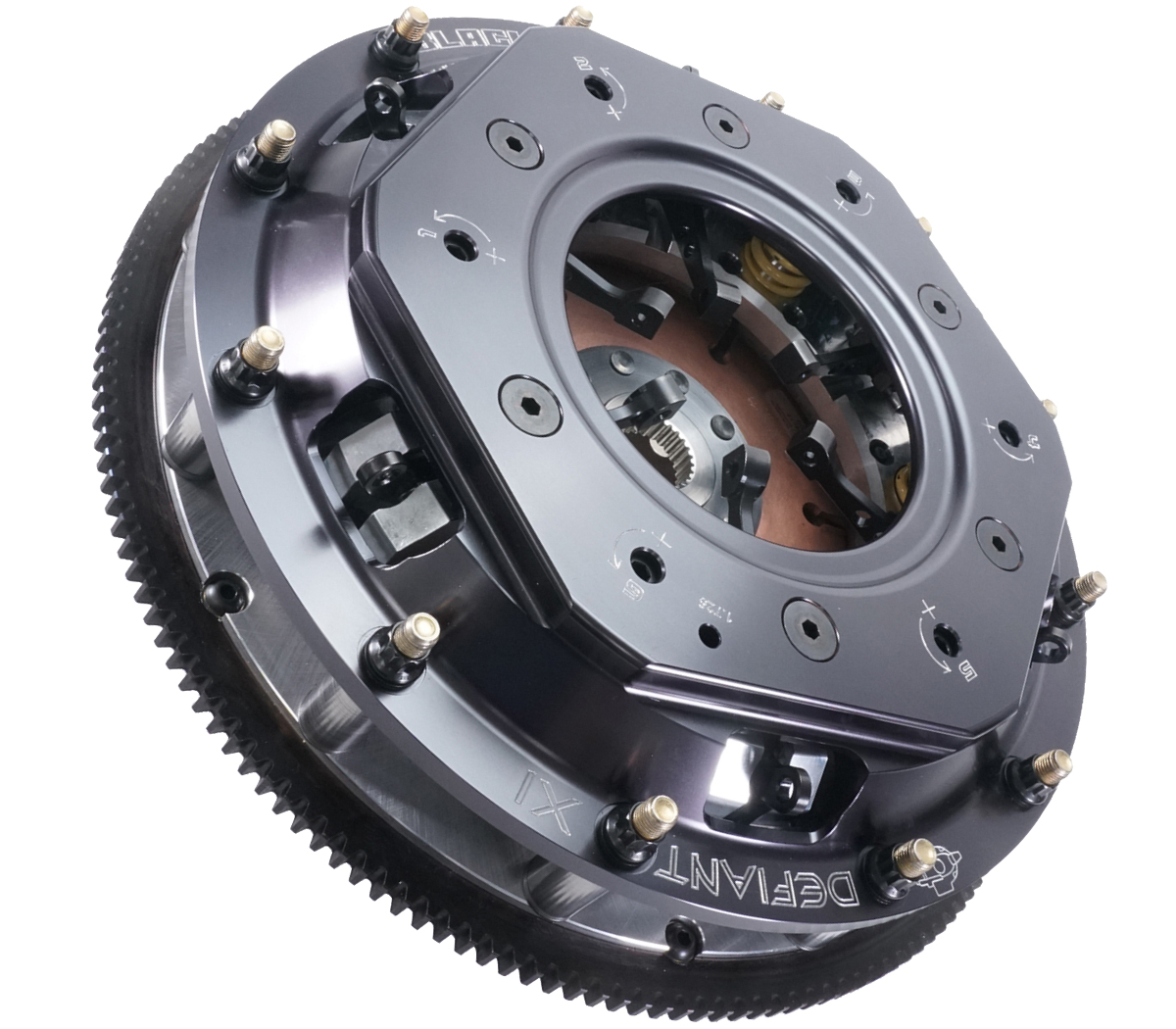

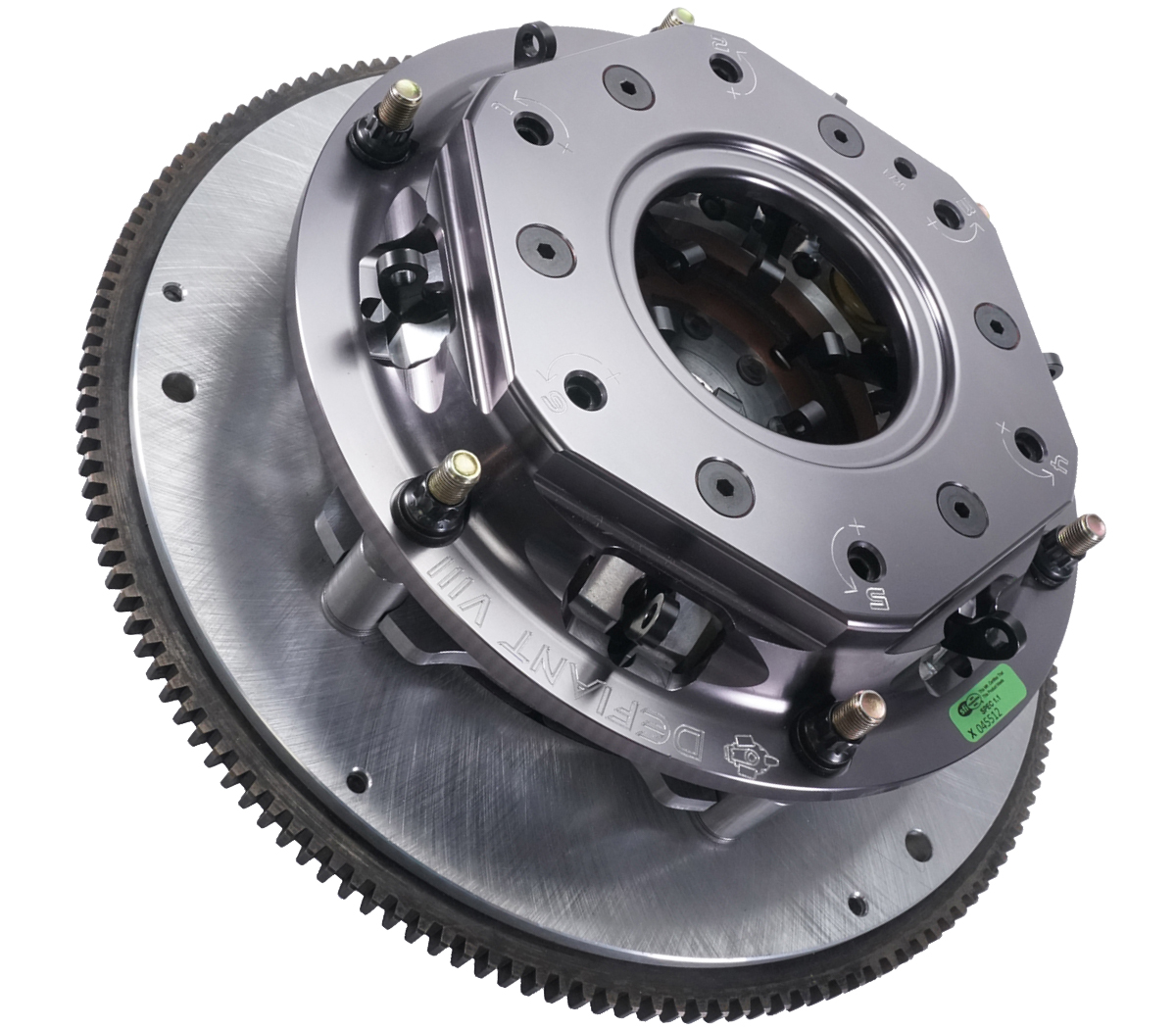

RAM Billet 10 inch single disc 3 lever clutch systems for drag racing

RAM offers a truly innovative single disc system with many enhanced features over conventional 11 inch steel cover systems.  These units were designed in partnership with Black Magic Clutches to provide stick shift racers with the most stable platform available, creating a long lasting and repeatable clutch system.  The innovations in height and diameter also allow fitment into many applications that were previously not possible.

  • Contoured for fit in tight bellhousing applications

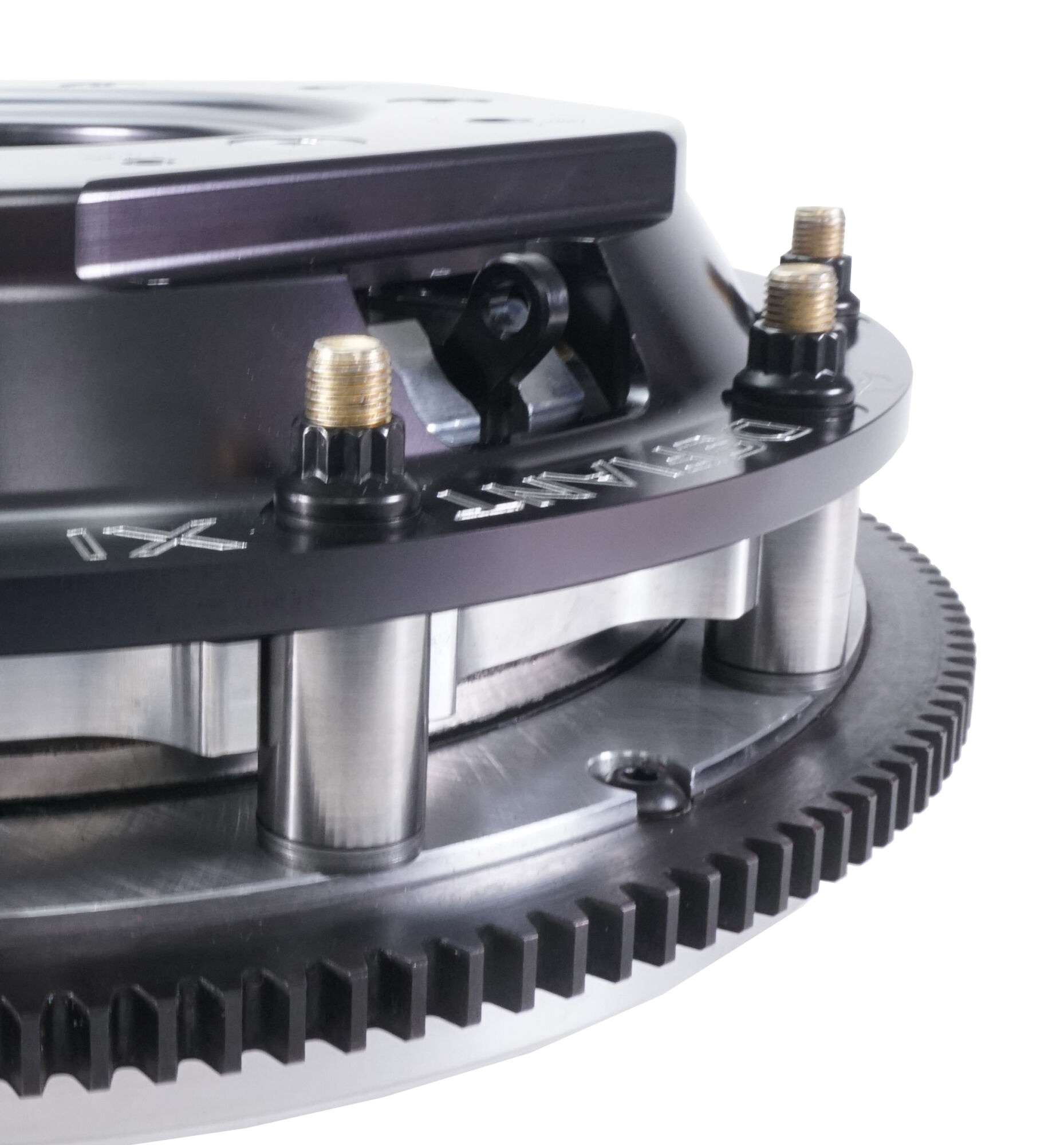

  • Shorter overall height than steel cover units by ¼ inch
  • 2 pounds lighter than conventional steel cover units
  • Available for smaller ring gear configurations

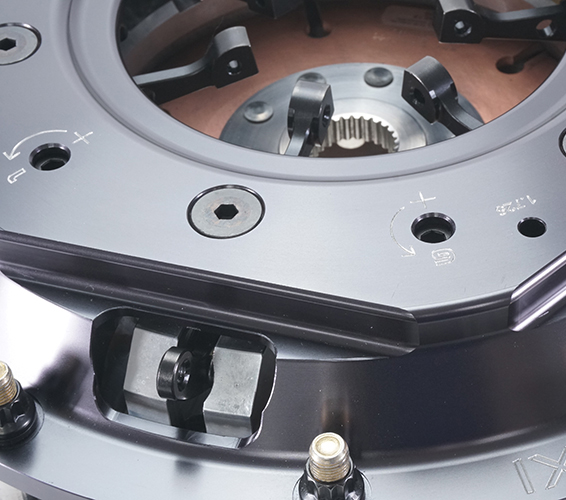

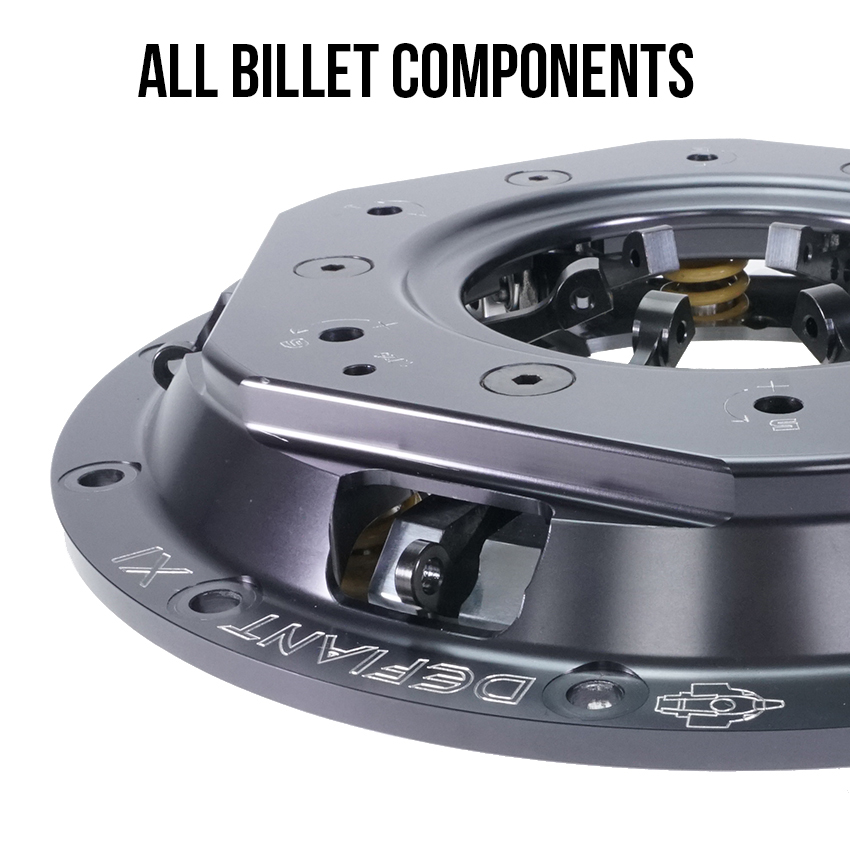

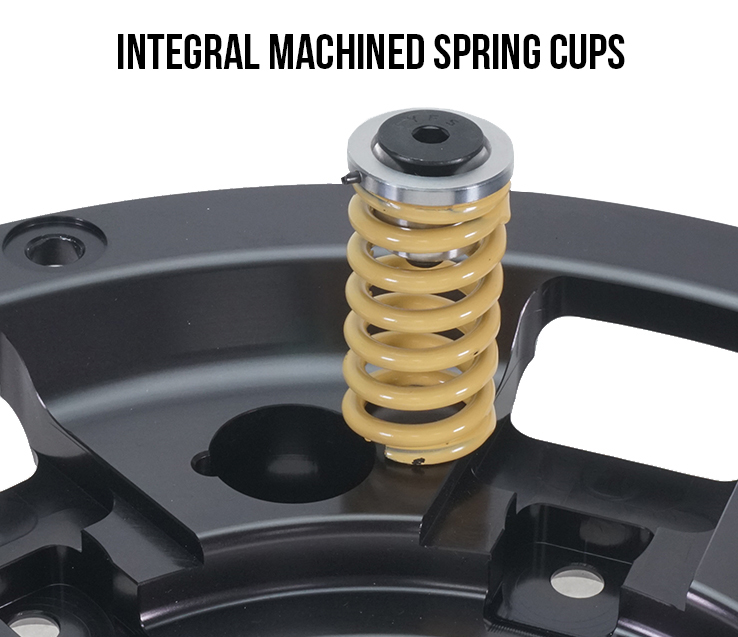

  • Cover design incorporates spring cups and heavy duty design

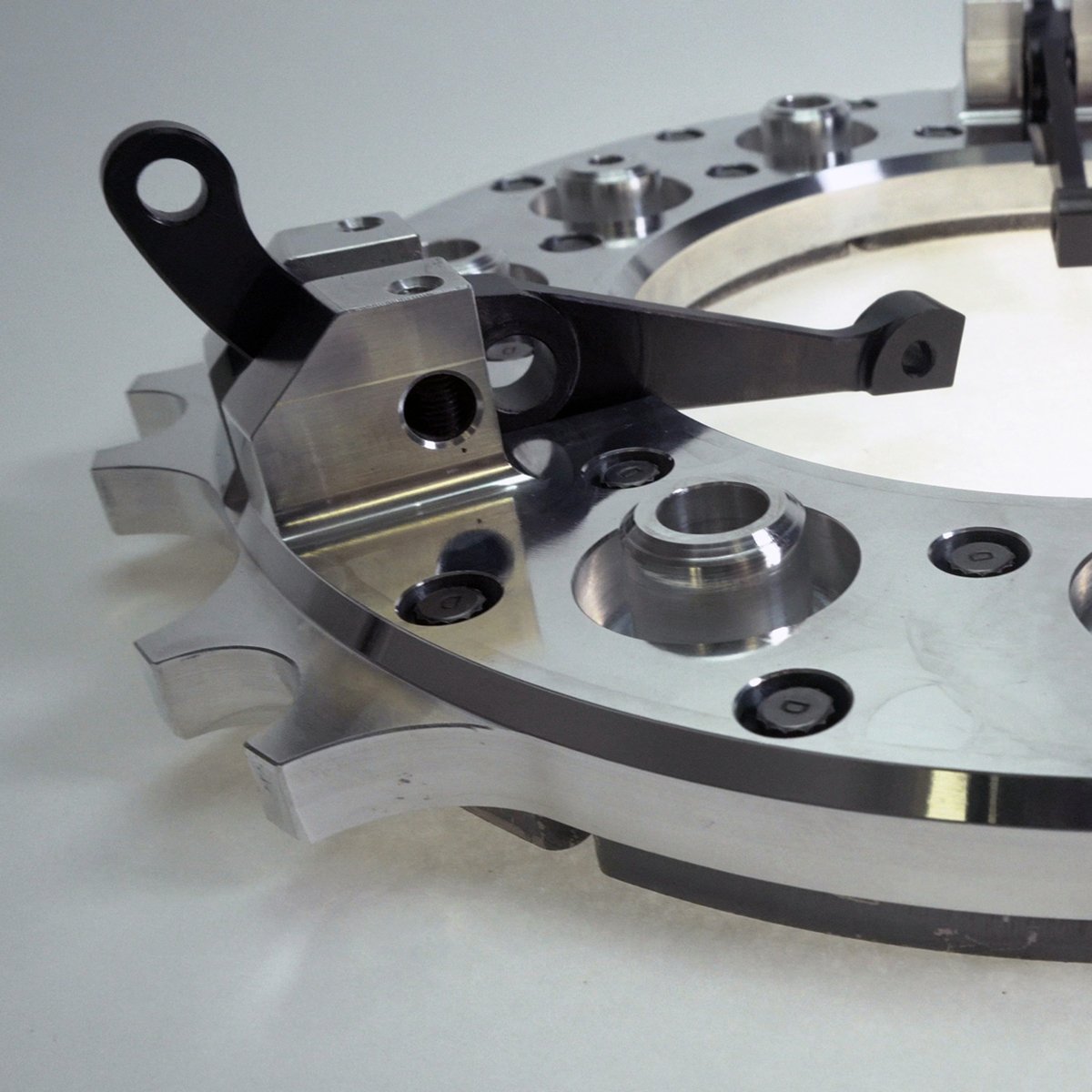

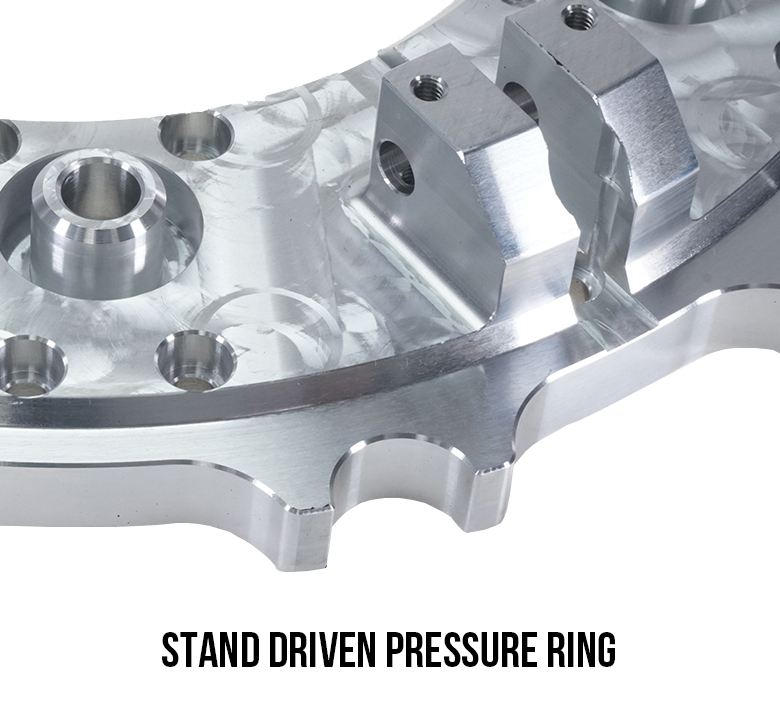

  • Pressure ring driven off stands versus Long Style, which drives off plate lugs and cover

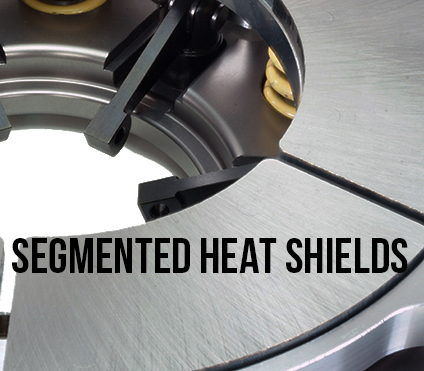

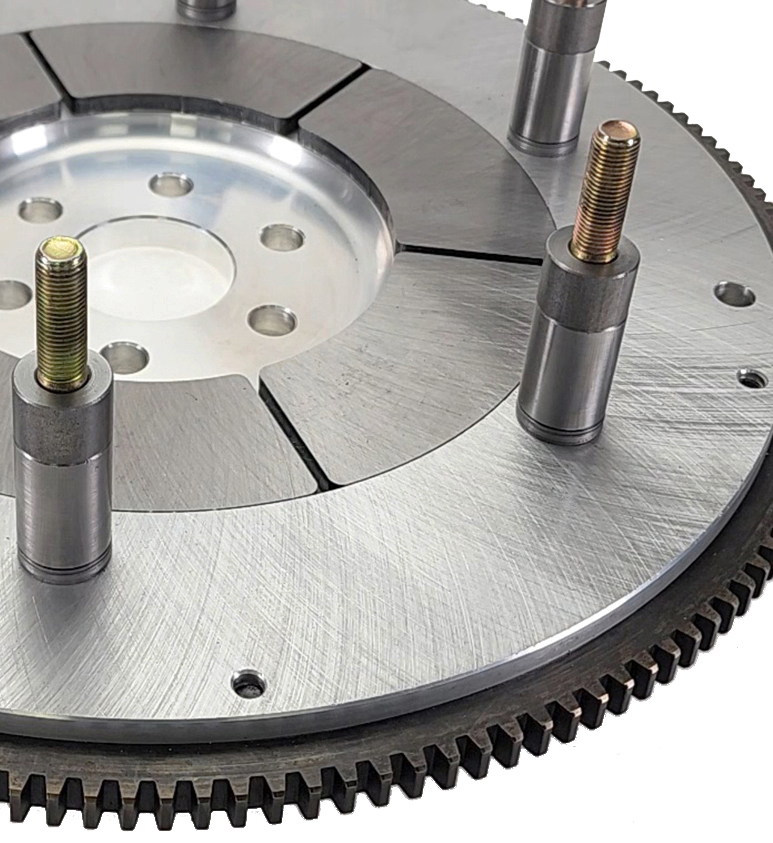

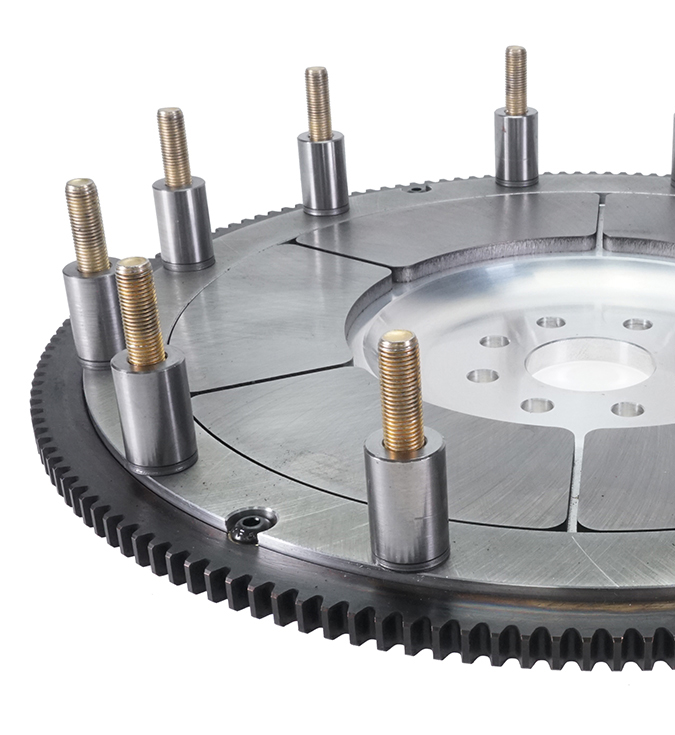

  • Segmented heat shields on both the pressure ring and flywheel allow both components to maintain flatter surfaces over time

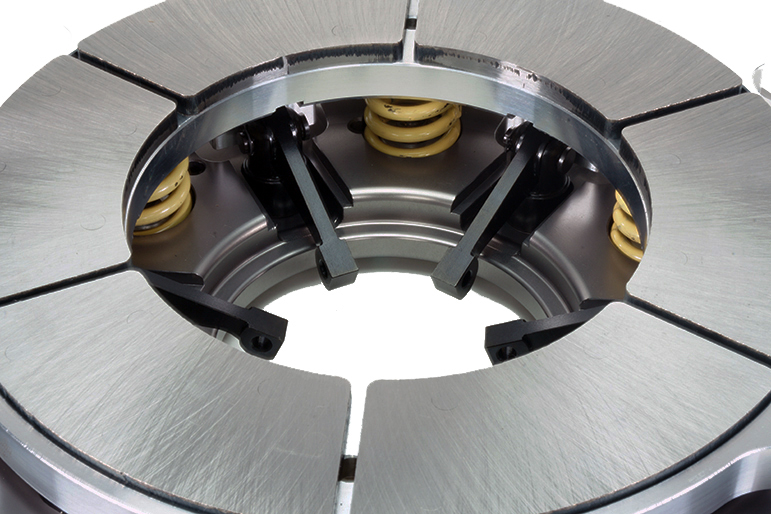

  • Lever position designed for pressure application at the center of the pressure ring

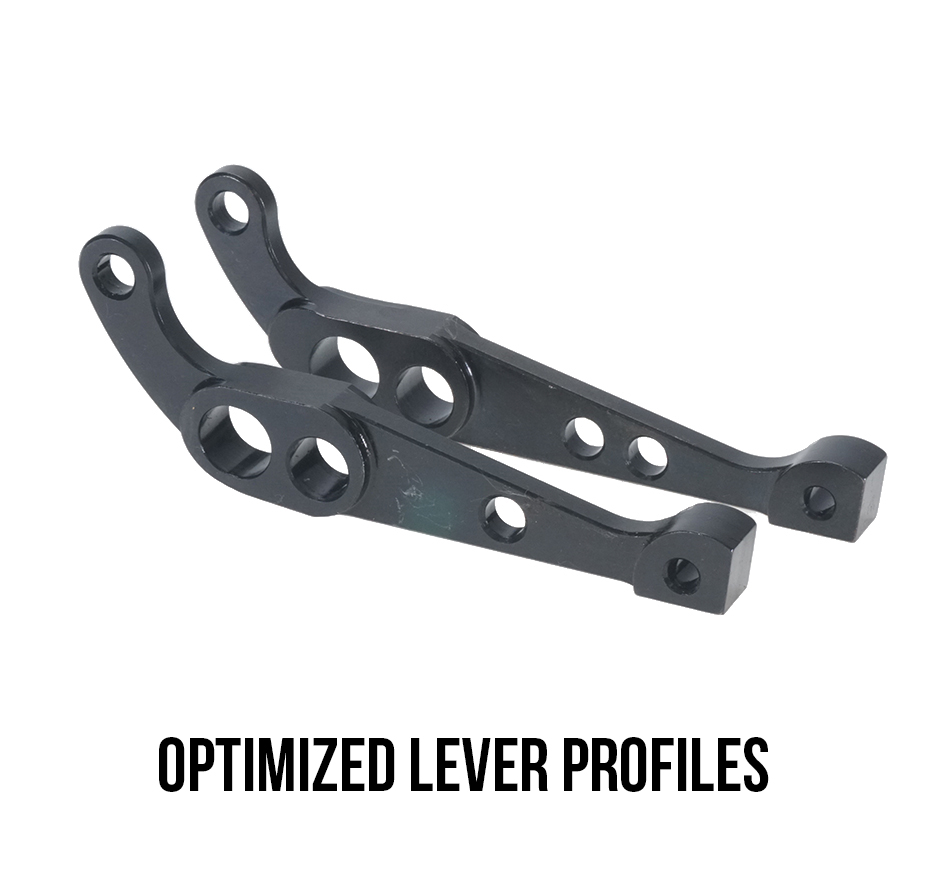

  • Lever profile optimized for best performance
  • Available in multiple base static pressures of 360, 500, 800, 1200
  • Can be converted/upgraded to dual disc models

10 INCH SINGLE PART NUMBERS

PART NUMBER
45-2100
CHEVY
GM LS engines 6 bolt crank 168 tooth
PART NUMBER
45-2117
CHEVY
GM LS engines 8 bolt crank 168 tooth
PART NUMBER
45-2125
CHEVY
Chevy SB/BB 2 pc. rear main 168 tooth '0' balance
PART NUMBER
45-2135
CHEVY
Chevy BB 168 tooth '454' balance
PART NUMBER
45-2155
CHEVY
Chevy SB 1 pc. Rear main 168 tooth '0' balance
PART NUMBER
45-2200
FORD
Ford Modular 8 bolt 164 tooth
PART NUMBER
45-2250
FORD
Ford SB 157 tooth 28 oz/in balance
PART NUMBER
45-2255
FORD
Ford SB 157 tooth '0' balance
PART NUMBER
45-2252
FORD
Ford SB 164 tooth '0' balance
PART NUMBER
45-2275
FORD
Ford BB 184 tooth '0' balance
PART NUMBER
45-2300
CHRYSLER
Chrysler 6 bolt 130 tooth '0' balance
PART NUMBER
45-2330
CHRYSLER
Chrysler 8 bolt 130 tooth '0' balance
SPECIFY SPLINE SIZE WHEN ORDERING. STANDARD BASE PRESSURE 500 LBS., OTHERS AVAILABLE

10 inch Single Disc Videos

Learn more about RAM’s new 10 inch single disc billet 3 lever clutch
See how the RAM 10 inch single disc billet 3 lever clutch is assembled in our shop
