Hydraulics Accessories & Repair Parts

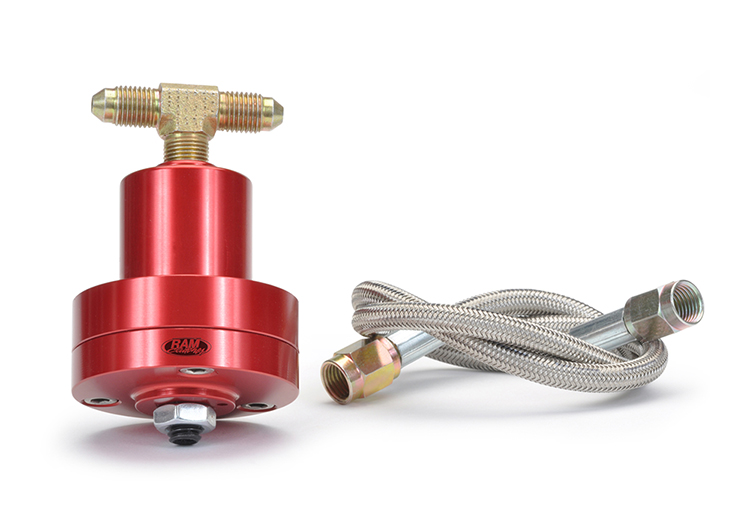

RAM HYDRAULIC PEDAL HEIGHT ADJUSTER

If you have driven many late model performance cars that utilize the internal hydraulic release bearing, you probably noticed that the pedal engagement point tends to be very high up in the stroke. We found this to be annoying and thus came up with our pedal height adjustment system that lets you put the release point where you want it in the pedal stroke.

The RAM pedal height adjuster plumbs inline between your factory or aftermarket master cylinder and release bearing. By adjusting the screw on the top of the cylinder, fluid is initially diverted to the adjuster cylinder, and once the cylinder fills the remaining fluid travels directly to the hydraulic bearing to actuate the clutch. This in effect adds ‘freeplay’ to the pedal and moves the engagement point downward towards the floor. The adjuster is compatible with any factory or aftermarket release bearing/master cylinder combination with the proper adapters.

The system ships with a -3an tee fitting and 12 inch -3an braided line. Additional adapters are listed below.

PEDAL HEIGHT ADJUSTERS

APPLICATION

PART NO.

DESC

Pedal height adjuster universal kit

PART NO.

78300

DESC

Pedal height adjuster kit -4an GM, Ford

PART NO.

78301

DESC

Pedal height adjuster kit -3an Dodge Challenger 2008-2024

PART NO.

78303

DESC

Pedal height adjuster kit -3an GM, Ford, Chrysler

PART NO.

78305

DESC

Pedal height adjuster kit -3an 1997-04 GM applications

PART NO.

78307

HYDRAULIC BEARING ACCESSORIES/REPAIR PARTS

APPLICATION

PART NO.

DESC

Replacement bearing - Snap on style for lever style clutches

PART NO.

78017L

DESC

Replacement bearing - Snap on style

PART NO.

78017

DESC

Replacement bearing complete assembly

PART NO.

78125HD-1

DESC

Drive stud 5/16-18 x 2.75" hex

PART NO.

78134S

DESC

Drive stud 5/16-18 x 3" hex

PART NO.

78134S-3

DESC

Drive stud 5/16-18 x 2.75 smooth

PART NO.

78151

DESC

drive stud 8mm-1.25 x 2 hex

PART NO.

78152

DESC

drive stud 8mm - 1.25 x 3 hex

PART NO.

78154

DESC

Remote bleeder kit For RAM pedal height adjuster

PART NO.

78308

DESC

Adapter fitting Ford GM male line adapter fitting -3an

PART NO.

78310

DESC

Adapter fitting Ford GM male line adapter fitting -4an

PART NO.

78311

DESC

Drive stud 5/16-18 x 2 hex

PART NO.

78320

DESC

Drive stud 3/8-16 x 2 hex

PART NO.

78320-1

DESC

Teflon line 12" -3an Straight to straight

PART NO.

78321

DESC

Teflon line 18" -3an straight to straight

PART NO.

78322

DESC

Teflon line 36" -3an straight to straight

PART NO.

78324

DESC

Teflon line 18" -3an straight to 90 degee

PART NO.

78326

DESC

Teflon line 36" -3an straight to 90 degree

PART NO.

78328

DESC

Shim assortment flat for 78141/78142

PART NO.

78330-1

DESC

Shim assortment conical 1.375" ID

PART NO.

78330

DESC

Shim spacer 3/4 aluminum 1.375" ID

PART NO.

78331

DESC

Adapter fitting -3an male to -3an male

PART NO.

78335

DESC

Adapter fitting -3an male to -4an male

PART NO.

78337

DESC

Feed line kit -3an 36 inch

PART NO.

78350

DESC

Input collar for 78130

PART NO.

78352

DESC

Input collar for 78131

PART NO.

78354

DESC

Feed line kit high flow -4an 36 inch

PART NO.

78355

DESC

Input collar for 78132

PART NO.

78356

DESC

Input collar for 78160

PART NO.

78358

DESC

Feed line kit -3an GM 2004-earlier

PART NO.

78360

DESC

Feed line kit -4an male x 1/8 male pipe

PART NO.

78375

DESC

Inlet fitting -4an male x 1/8 male pipe 45 degree

PART NO.

78377

DESC

Inlet fitting -3an male x 1/8 male pipe 45 degree

PART NO.

78379

DESC

O-ring repair kit 78125 only

PART NO.

78505

DESC

O-ring repair kit 78141, 78142 (gray housing)

PART NO.

78508

DESC

O-ring repair kit 78141, 78142 (black housing)

PART NO.

78508-1

DESC

Teflon wiper ring set HD bearing kits

PART NO.

78509-2

DESC

O-ring repair kit All exc. 78125, 78141, 78142

PART NO.

78509

DESC

Remote bleeder kit all bearing kits

PART NO.

78510

DESC

.500” 6 speed bearing spacer 6mm

PART NO.

78511

DESC

.500” 6 speed bearing spacer 8mm

PART NO.

78512

DESC

.750” 6 speed bearing spacer 6mm

PART NO.

78513

DESC

1.00” 6 speed bearing spacer 6mm

PART NO.

78514

DESC

1.25” 6 speed bearing spacer 6mm

PART NO.

78515

DESC

1.2” 6 speed5 bearing spacer 8mm

PART NO.

78516

DESC

.750” 6 speed bearing spacer 8mm

PART NO.

78517

DESC

.250" 6 speed bearing spacer 6mm

PART NO.

78518

All technical inquiries and questions on hydraulics are handled electronically – please use the link here to access the E-Tech hydraulics application questions form. Please use the link here to access the E-Tech hydraulics technical questions form.

If you do not have access to email, print this form, complete it, and mail to:

RAM Clutches, 201 Business Park Blvd, Columbia, SC 29203 ATTN: Hydraulics tech.
