Clutch Discs
RAM CLUTCH DISCS
CHOOSE THE ENGAGEMENT YOU NEED
HDX200 SERIES DISCS are designed for mild horsepower increases in vehicles that are street driven and where driveability is an important factor. Organic woven friction material and sprung hub dampening provide smooth engagement and a high level of driver comfort in operation. Use HDX discs with any RAM pressure plate in muscle car, hot rod, or other mildly tuned street vehicles.

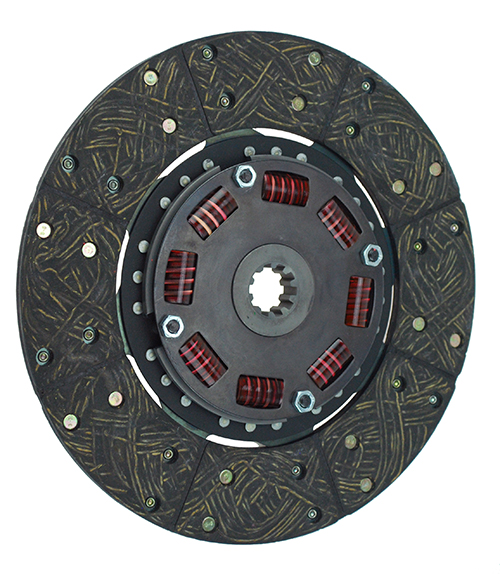

COMPETITION 300 SERIES DISCS meet the requirements of high RPM engines for street or competition use. High strength woven friction material is bonded to a steel backing plate to provide a high burst strength, smooth engagement, and long service life. Urethane encapsulated springs in an eight spring hub are more effective in absorbing high shock loads. Discs are available in a flat carrier (‘300’ competition) and marcel carrier (‘300’ street/strip) versions. Use 300 series discs for street vehicles or racing application requiring a softer engagement.

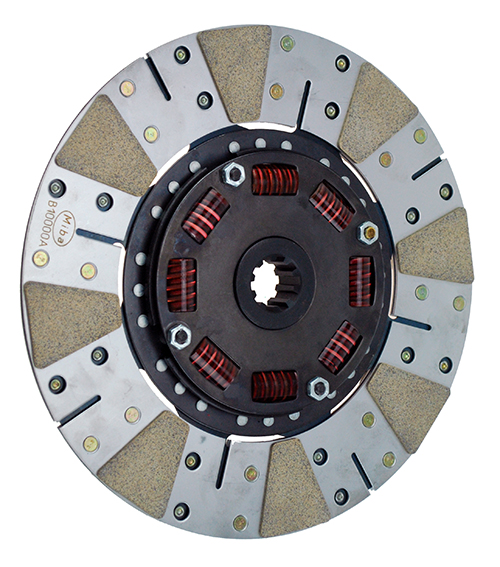

POWERGRIP 900/300 DISCS are a blend of organic 300 series and 900 series metallic friction materials that retains all the good engagement characteristic of a full organic disc yet provides a substantial increase in torque capacity. Urethane encapsulated springs in an eight spring hub are more effective in absorbing high shock loads. Use Powergrip discs for higher horsepower or higher torque load vehicles where good driveability is a requirement.
POWERGRIP 900 SERIES HD DISCS are a full metallic friction material that offers a degree of smooth driveability unmatched by any other metallic disc. Urethane encapsulated springs in an eight spring hub are more effective in absorbing high shock load. Use powergrip 900 series discs for ‘strip/street’ vehicles when matched with wht correct RAM pressure plate.

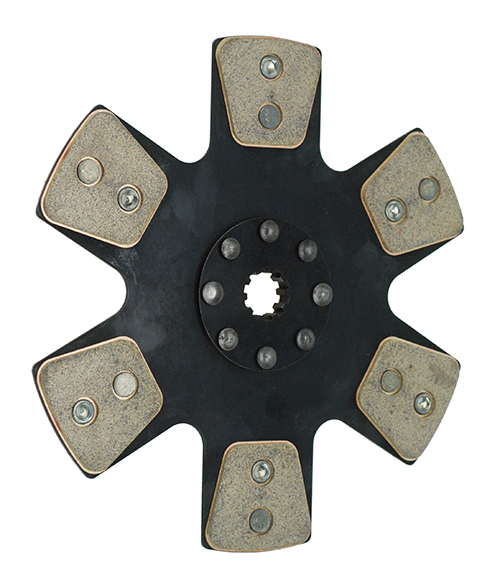

RAMETALLIC 1000 AND 6000 SERIES DISCS are the original ‘6 paddle disc’. Available in solid hub or with urethane encapsulated springs in an eight spring hub that is more effective in absorbing high shock loads. Use Rametallic discs for competition or very limited street applications.
SIZE / SPLINE | MAKE | 200 SERIES | 300 STREET SERIES | 300 RACE SERIES | 900/300 SERIES | 900 SERIES | 6 PAD SOLID HUB | 6 PAD SPR. HUB | TOOL | PRO TOOL |
---|---|---|---|---|---|---|---|---|---|---|
SIZE / SPLINE 10.5 X 1-23 | MAKE Chry | 200 SERIES 203 | 300 STREET SERIES 303M | 300 RACE SERIES 303 | 900/300 SERIES 973 | 900 SERIES 903 | 6 PAD SOLID HUB 1023 | 6 PAD SPR. HUB 6123 | TOOL 5309 | PRO TOOL - |
SIZE / SPLINE 11 X 1-23 | MAKE Chry | 200 SERIES 204 | 300 STREET SERIES 304M | 300 RACE SERIES 304 | 900/300 SERIES 974 | 900 SERIES 904 | 6 PAD SOLID HUB 1124 | 6 PAD SPR. HUB 6124 | TOOL 5309 | PRO TOOL - |
SIZE / SPLINE 10.5 x 1 1/8-10 | MAKE GM | 200 SERIES 201 | 300 STREET SERIES 301M | 300 RACE SERIES 301 | 900/300 SERIES 971 | 900 SERIES 901 | 6 PAD SOLID HUB 1021 | 6 PAD SPR. HUB 6121 | TOOL 5301 | PRO TOOL 03-001 |
SIZE / SPLINE 11 x 1 1/8-10 | MAKE GM | 200 SERIES 202 | 300 STREET SERIES 302M | 300 RACE SERIES 302 | 900/300 SERIES 972 | 900 SERIES 902 | 6 PAD SOLID HUB 1122 | 6 PAD SPR. HUB 6122 | TOOL 5301 | PRO TOOL 03-001 |
SIZE / SPLINE 10.5 x 1 1/8-26 | MAKE GM | 200 SERIES 209 | 300 STREET SERIES 309M | 300 RACE SERIES 309 | 900/300 SERIES 979 | 900 SERIES 909 | 6 PAD SOLID HUB 1029 | 6 PAD SPR. HUB 6129 | TOOL 5313 | PRO TOOL 03-013 |
SIZE / SPLINE 11 x 1 1/8-26 | MAKE GM | 200 SERIES 210 | 300 STREET SERIES 310M | 300 RACE SERIES 310 | 900/300 SERIES 980 | 900 SERIES 910 | 6 PAD SOLID HUB 1130 | 6 PAD SPR. HUB 6130 | TOOL 5313 | PRO TOOL 03-013 |
SIZE / SPLINE 10.5 x 1 1/16-10 | MAKE Ford | 200 SERIES 205 | 300 STREET SERIES 305M | 300 RACE SERIES 305 | 900/300 SERIES 975 | 900 SERIES 905 | 6 PAD SOLID HUB 1025 | 6 PAD SPR. HUB 6125 | TOOL 5304 | PRO TOOL 03-004 |
SIZE / SPLINE 11 x 1 1/16-10 | MAKE Ford | 200 SERIES 206 | 300 STREET SERIES 306M | 300 RACE SERIES 306 | 900/300 SERIES 976 | 900 SERIES 906 | 6 PAD SOLID HUB 1126 | 6 PAD SPR. HUB 6126 | TOOL 5304 | PRO TOOL 03-004 |
SIZE / SPLINE 10.5 x 1 3/16-18 | MAKE Chry | 200 SERIES 207 | 300 STREET SERIES 307M | 300 RACE SERIES 307 | 900/300 SERIES 977 | 900 SERIES 907 | 6 PAD SOLID HUB 1027 | 6 PAD SPR. HUB 6127 | TOOL 5382 | PRO TOOL - |
SIZE / SPLINE 11 x 1 3/16-18 | MAKE Chry | 200 SERIES 208 | 300 STREET SERIES 308M | 300 RACE SERIES 308 | 900/300 SERIES 978 | 900 SERIES 908 | 6 PAD SOLID HUB 1128 | 6 PAD SPR. HUB 6128 | TOOL 5382 | PRO TOOL |
SIZE / SPLINE 10.5 x 1 3/8-10 | MAKE Ford | 200 SERIES 212 | 300 STREET SERIES 312M | 300 RACE SERIES 312 | 900/300 SERIES 982 | 900 SERIES 912 | 6 PAD SOLID HUB 1032 | 6 PAD SPR. HUB 6132 | TOOL 5325 | PRO TOOL |
SIZE / SPLINE 11 x 1 3/8-10 | MAKE Ford | 200 SERIES 211 | 300 STREET SERIES 311M | 300 RACE SERIES 311 | 900/300 SERIES 981 | 900 SERIES 911 | 6 PAD SOLID HUB 1131 | 6 PAD SPR. HUB 6131 | TOOL 5325 | PRO TOOL |
