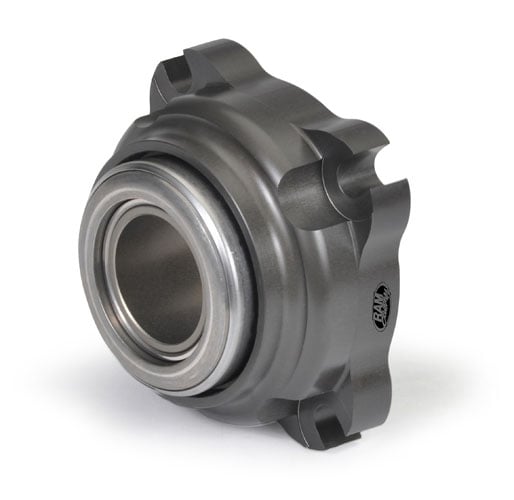

RAM HYDRAULIC RELEASE BEARINGS

RAM hydraulic release bearings are designed to be used with RAM or other multiple disc clutches. The bearing base mounts to the front of the transmission using the provided bolts.  RAM hydraulic bearings require a 3/4 or 7/8 inch master cylinder and the -4 AN connection line.  .500″ total travel.  All parts necessary for rebuild are available from RAM.

DESCRIPTION

PART NUMBER

DESCRIPTION

GM Round Face .460 travel

PART NUMBER

78100

DESCRIPTION

Replacement 'o' ring set

PART NUMBER

78500

DESCRIPTION

Remote bleeder kit

PART NUMBER

78510

DESCRIPTION

Replacement snap ring set

PART NUMBER

78520

DESCRIPTION

Replacement piston

PART NUMBER

78530

DESCRIPTION

Replacement round face bearing

PART NUMBER

78010

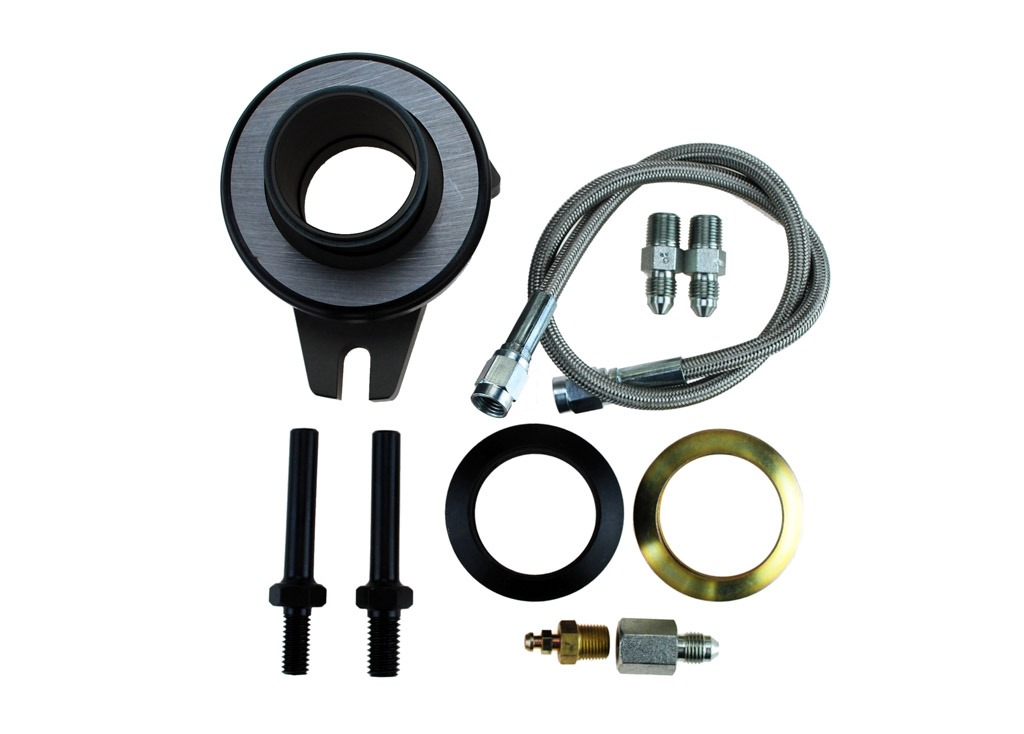

Flat faced units are for use with single disc stock type clutch systems.  Our HD version includes beefed up o-rings with Teflon backup for unparalleled durability.  Maximum travel for flat faced bearings is .800″ & we recommend the use of a 3/4″ bore master cylinder and DOT 3 non-synthetic fluid.

DESCRIPTION

PART NUMBER

DESCRIPTION

GM Stock Clutch .800' travel

PART NUMBER

78125

DESCRIPTION

GM HD Stock Clutch .800' travel

PART NUMBER

78125HD

DESCRIPTION

Ford T-5 (exc. World Class)

PART NUMBER

78130

DESCRIPTION

Ford Tremec 26 Spline

PART NUMBER

78132

DESCRIPTION

Replacement bearing for 78125, 78130, 78132

PART NUMBER

78017

DESCRIPTION

Replacement 'o' ring set for 78125 (.068" dia.)

PART NUMBER

78505

DESCRIPTION

Replacement 'o' ring set for 78125HD, 7813, 78132 (.132" dia.)

PART NUMBER

78509

Factory hydraulic systems do not allow for adjustment of the pedal position, often resulting in a high engagement point when using aftermarket clutches.  The RAM system allows you to adjust your pedal position lower to the floor for better driver comfort.  Additionally, this system will allow you to minimize the release of your clutch system for racing applications.  Some vehicles experience shifting problems at higher RPM due to overcentering, or overtravel of the clutch fingers. By limiting this travel and setting the clutch pedal for minimum release this overtravel situation can be eliminated, restoring clean shifts at high RPM.

DESCRIPTION

PART NUMBER

DESCRIPTION

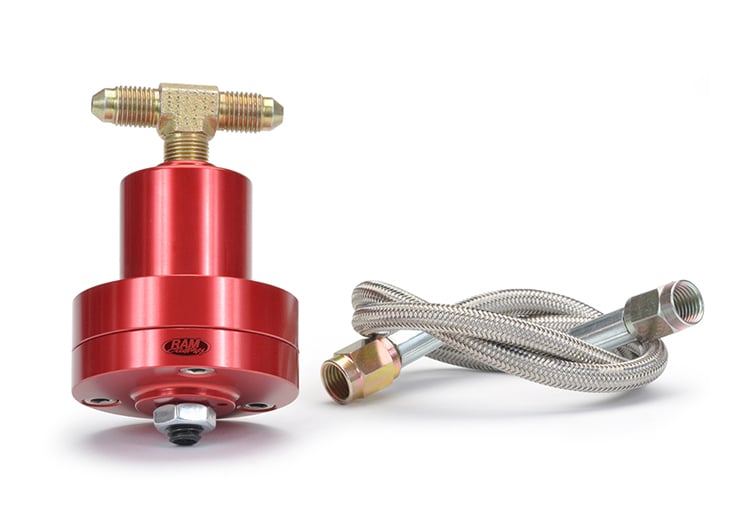

Hydraulic Bearing Pedal Adjuster

PART NUMBER

78300
